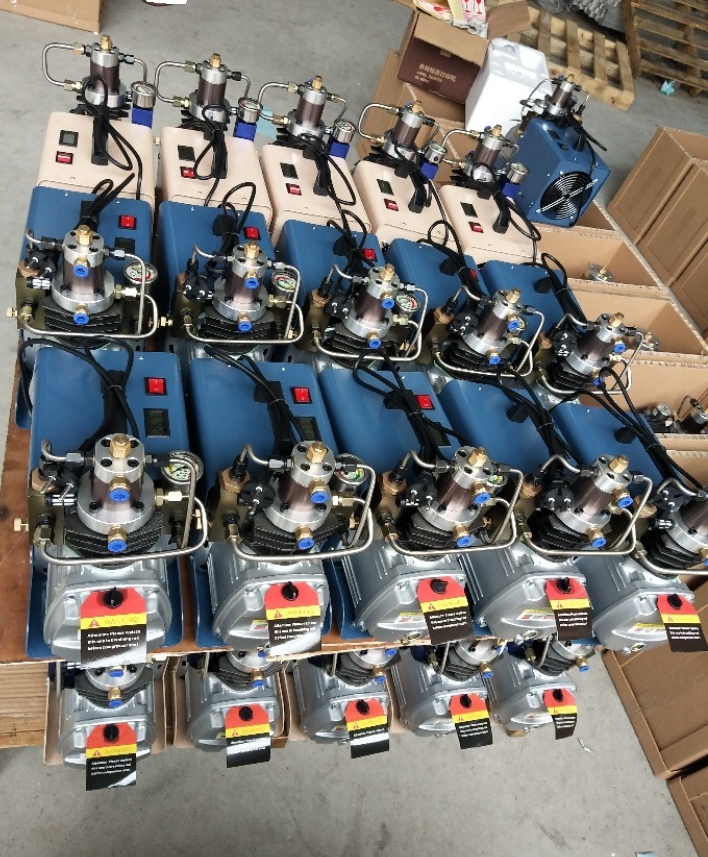

300bar /30 Mpa Electrical Portable PCP air compressors
300bar /30 Mpa Electrical Portable PCP air compressors 300bar /30 Mpa Electrical Portable PCP air compressors 300bar /30 Mpa Electrical Portable PCP air compressors
300bar /30 Mpa Electrical Portable PCP air compressors 300bar /30 Mpa Electrical Portable PCP air compressors 300bar /30 Mpa Electrical Portable PCP air compressors
Name:300bar /30 Mpa Electrical Portable PCP air compressors
Pressure:300 Bar
Weight:17Kgs
Package:Strengthen Export Carton box
Voltage:220V/110V
Warrenty:1 Year
MOQ:20 PCS
Delivery Time:20 days after payment
Payment:T/T ,Western Union
Cooling:Water Cooling

Product Description

● Maximum pressure 350 bar / 35 MPa
  Low running noise
  Supplied with quick connector
  Compressor fills from totally empty or can be used to top-up tanks
  Automatic shut-off when required pressure is reached
  Burst discs protect against over-filling
  Highly efficient manually operated water separator
  Top-grade cooling system (water and air)
  Spare parts kit and tools included
Comprehensive manual with many service notes and repair instructions

Measurements with transport packaging:
L 36 x W 37 x H 18 cms
Weight: 17 kgs (with packing)
Technical data:
Working pressure max. 350 bar / 35 MPa
Operating voltage 220-240 V alternating current  or 110V alternating current
Performance: 1.8 KW
Filling rate: 2800 R / min
Air Flow Rate:50L/min

Cooling System : Water System

Working Pressure :0-4500 psi

Compression Stage : Two Stage

Lubrication Model :Splash Model

Material Cover : Cast Aluminum

Material of Motor :100% Pure Cooper

Oil : ISO VG 46 Anti-Wear Hydraulic Oil (The compressor is without oil due to Oil is not allowed on the plane )

Test Inflating Result : It takes 3 mins to fill full 18 cu ft tank to 4500 psi ,It takes 70 mins to fill full 74 cu ft tank to 4500 psi .

 CE - marking to comply with European regulations
