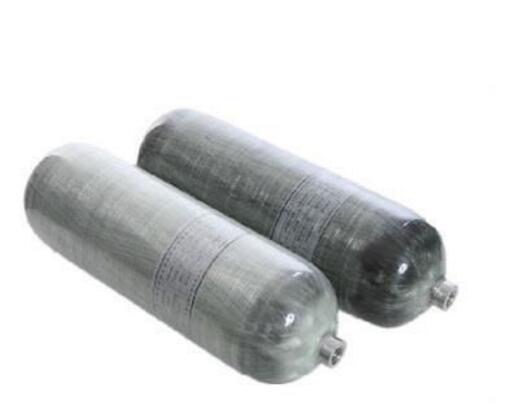

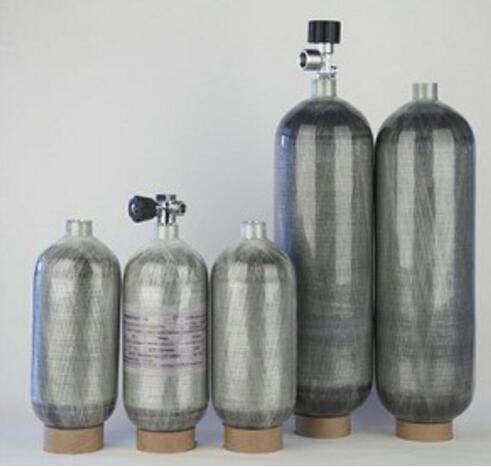

300bar empty carbon fiber gas cylinder for hunting/diving
300bar empty carbon fiber gas cylinder for hunting/diving 300bar empty carbon fiber gas cylinder for hunting/diving 300bar empty carbon fiber gas cylinder for hunting/diving 300bar empty carbon fiber gas cylinder for hunting/diving
300bar empty carbon fiber gas cylinder for hunting/diving 300bar empty carbon fiber gas cylinder for hunting/diving 300bar empty carbon fiber gas cylinder for hunting/diving 300bar empty carbon fiber gas cylinder for hunting/diving
Name:300bar empty carbon fiber gas cylinder for hunting/diving
Type:Fully Wrapped Carbon Fiber Reinforced Aluminium Lined Composite Cylinder
Function:Air Supply
Application:PCP Air Gun, SCBA, Medical treatment, Mining Rescue,etc
Material:Aluminum Liner With Carbon Fiber Wrapped
Water Capacity:0.5L/1.6L/2L/3L/4.7/6L/6.8L/8L/9L/12L
Working Pressure:30 MPa
Thread:M18×1.5-6H
Certificate:CE
Test Pressure:50 MPa
MOQ:15PCS
Delivery Time:20working days after payment
Payment Terms:T/T,L/C ,Western Union
Port of Loading:Shanghai or Ningbo Port

Product Description

Type

Volume

（litre)

Outer Diameter

(mm)

Length

(mm)

Weight

(kg)

Working Pressure

(Mpa)

Breaking Pressure

(Mpa)

HFCFC-0.5

0.5

60

305

0.6

30

≥90

HFCFC-1.6

1.6

114

268

1.4

30

≥90

HFCFC-2

2

96

433

1.5

30

≥90

HFCFC-3

3

112

445

1.9

30

≥102

HFCFC-4.7

4.7

137

492

3.0

30

≥102

HFCFC-6.8

6.8

157

528

3.8

30

≥≥102

HFCFC-9

9

174

558

4.9

30

≥102

HFCFC-12

12

205

565

7.4

30

≥102

Features : Carbon Fiber Wrapped Gas Cylinders

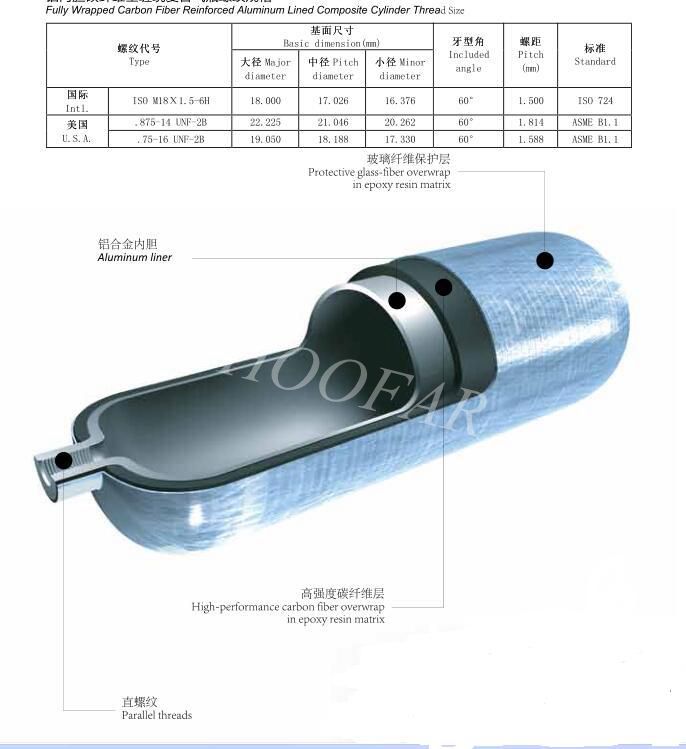

Structure: Aluminium lined and carbon fiber fully wrapped.

Advantage:

*The highest standard for safety.

* Ultra lightweight, superior strength, durable design.

*Perfect treatment for surface interior and exterior to reach corrosion-free.

Application: Air Storage Tank for PCP air guns, Self-contained breathing apparatus (SCBA), firefighting, pit rescue and other life support.

Standard: EN 12245,GB28053-2011,ISO11119,DOT,CFFC.
