China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA
China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA
China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA
Name:China carbon fiber composite cylinders,CNG gas cylinders for hunting or SCBA
Water volume:0.22L-12L
Outer diameter:85mm-208mm
Working pressure:200bar/300bar
Test pressure:500bar
Cylinder life-span:15years
Material:Aluminium lined and carbon fiber fully wrapped
Certificate:CE
Standard:EN1225
MOQ:15PCS
Terms of Payment:T/T,L/C or Western Union
Delivery Time:20 days after payment
Port of Loading:Shanghai or Ningbo

Product Description


Type

Volume

litre)

Outer Diameter

(mm)

Length

(mm)

Weight

(kg)

Working Pressure

(Mpa)

Breaking Pressure

(Mpa)

HFCFC-0.5

0.5

60

305

0.6

30

≥90

HFCFC-1.6

1.6

114

268

1.4

30

≥90

HFCFC-2

2

96

433

1.5

30

≥90

HFCFC-3

3

112

445

1.9

30

≥102

HFCFC-4.7

4.7

137

492

3.0

30

≥102

HFCFC-6.8

6.8

157

528

3.8

30

≥≥102

HFCFC-9

9

174

558

4.9

30

≥102

HFCFC-12

12

205

565

7.4

30

≥102

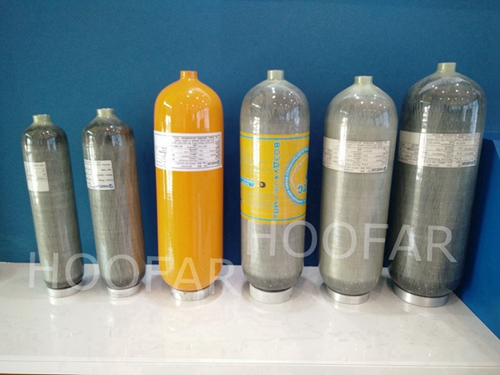

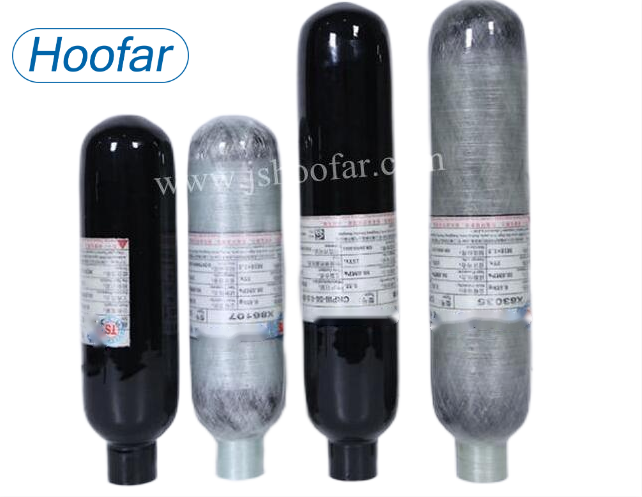

Carbon Fiber Breathing Air Cylinder 2L, 3L, 6.8L, 9L, 12L, Air Breathing Apparatus Cylinders, Air Breathing Apparatus SCBA Cylinder, Carbon Fiber Cylinder for breathing system.


Specs:

-Water volume: 1.0Liter to 12Liter;

-Outer diameter: 85mm to 208mm;

-Working pressure 200bar/300bar;

-Cylinder life-span: 15years;

-Aluminium lined and carbon fiber fully wrapped.

*Advantages: Safe, lightweight, corrosion-resistant, Superior strength, Durable design, perfect treatment for surface interior and exterior.

*Applications: Firefighting, pit rescue and other life support system.
