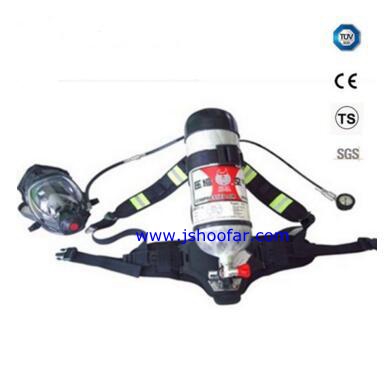

90 min Self-contained Breathing Apparatus 9L composite gas cylinder

Name:	90 min Self-contained Breathing Apparatus 9L composite gas cylinder
Material:	Carbon fiber wrapper,Aluminum lined
Service pressure:	4500psi
Capacity Avaliable:	21ci,31ci
Life Span:	15years
Test Pressure:	500bar
Thread size:	M18×1.5
MOQ:	15PCS
Terms of payment:	T/T,L/C
Port of lading:	Shanghai or Ningbo

Product Description

Introduction :

• 100% Jshoofar manufacture and direct sell.

• CE approved by TUV; TS approved by AQSIQ.

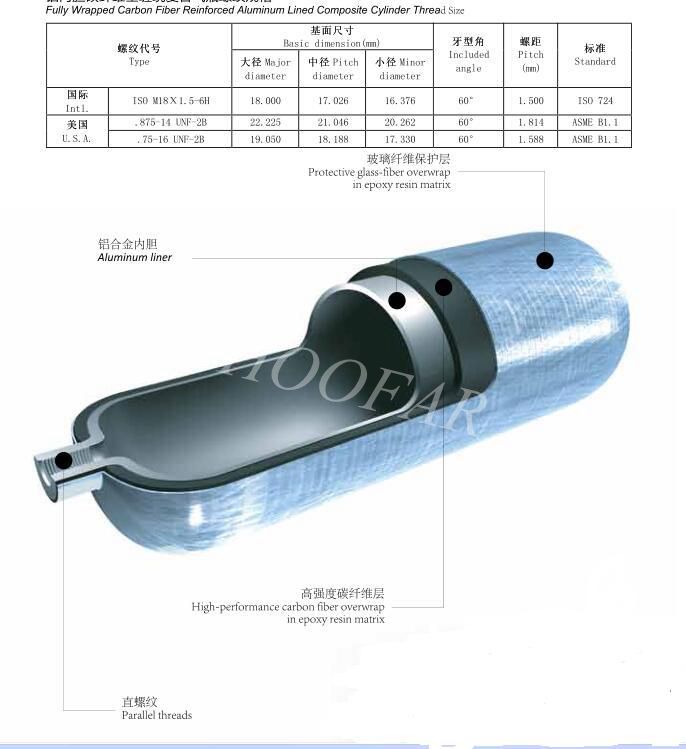

• Construction: Seamless aluminum ally 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. The high strength and safety-assured construction provides up to 300bar service pressure, which enlarges gas storage capacity to 1.5~2 times than that of aluminum or steel cylinders.

• Extremely Light weight, up to 60%-70% lighter than steel cylinders and 30-40% lighter than aluminum cylinders.

• Specification: GB28053-2011, ISO11119, DOT CFFC, EN12245.

• Thread, valves and fittings upon request.

• Proper packing (plastic net, bubble plastic , carton and pallet) or upon request.

• Third party inspection available.

• Form A, Form E available.

• The specifications of carbon fiber composite cylinders behind covers a wide range of applications such as Self-contained breathing apparatus (SCBA), paintball gun, home oxygen therapy, aircraft oxygen, ELSA escape sets, and other applications that require lighter weight, stronger corrosion-resistance inner surface, and higher gas storage capacity. However, if you do not find the size that you want, please feel free to let us know. We are very happy to discuss your further requirements.

Type	Volume （litre)	Outer Diameter (mm)	Length (mm)	Weight (kg)	Working Pressure (Mpa)	Breaking Pressure (Mpa)
HFCFC-0.5	0.5	60	305	0.6	30	≥90
HFCFC-1.6	1.6	114	268	1.4	30	≥90
HFCFC-2	2	96	433	1.5	30	≥90
HFCFC-3	3	112	445	1.9	30	≥102
HFCFC-4.7	4.7	137	492	3.0	30	≥102
HFCFC-6.8	6.8	157	528	3.8	30	≥≥102
HFCFC-9	9	174	558	4.9	30	≥102
HFCFC-12	12	205	565	7.4	30	≥102

Note: The specifications above are popularly used in Oxygen breathing apparatus and Self-contained breathing apparatus. However, if you need other size or specifications, please contact us directly. We would be happy to discuss your further requirements.
