high pressure 3L Fully Wrapped carbon fiber cng composite cylinder-Product Center-CHANGZHOU HOOFAR INDUSTRIAL CO.,LTD-

fully wrapped carbon fiber cylinders from 0.2 liter to 12 liters passed CE certificate with competitive price

Name:	fully wrapped carbon fiber cylinders from 0.2 liter to 12 liters passed CE certificate with competitive price
Material:	Composite Material
Use:	Oxygen
Pressure:	high
water capacity:	0.2-1.5L
outside diameter:	105mm
cylinder height:	430mm
cylinder weight:	2.1kg
working pressure:	300bar
test pressure:	450bar
cylinder thread:	M18×1.5
service time:	15years
Standard:	EN12245
Certification:	CE

Product Description

Specifications

TPED European composite cylinder
1) Water Capacity:0.2 liter to 1.5liter,
2) Service Pressure: 300 Bar
3) Height:430mm
4) Certification:TPED,CE,

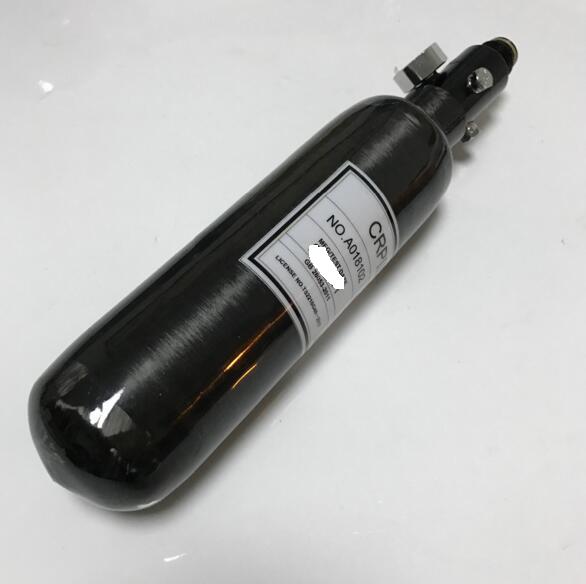

TPED composite cylinder for breathing or diving

Breathing Apparatus Small Scba Air Bottle Pressure:

Advantage: Ultra standard for safety.
Lightweight, high strength, corrosion-resistant, perfect treatment
for surface interior and exterior. Superior performance.
Delivery time: 10days to 30days upon deposit.

Specification	Outer Diameter	Water Volume	Length	Weight	Working Pressure
Specification	mm	liter	mm	kg	bar
CRPIII-60-0.45-30-T	60	0.45	290	0.5	300
CRPIII-93-0.6-30-T	84	0.6	193	0.5	300
CRPIII-93-0.7-30-T	93	0.7	203	0.7	300
CRPIII-100-1.1-20-T	100	1.1	231	1	200
CRPIII-103-1.1-30-T	103	1.1	234	1.2	300
CRPIII-116-1.8-30-T	116	1.8	292	1.5	300
CRPIII-117-1.5-30-T	117	1.5	249	1.3	300
