Explosive Models EN12245 CE Certified 15-Year Service Life Air Cylinder High Pressure Hydrogen Cylinder for Paintball
Explosive Models EN12245 CE Certified 15-Year Service Life Air Cylinder High Pressure Hydrogen Cylinder for Paintball Explosive Models EN12245 CE Certified 15-Year Service Life Air Cylinder High Pressure Hydrogen Cylinder for Paintball
Explosive Models EN12245 CE Certified 15-Year Service Life Air Cylinder High Pressure Hydrogen Cylinder for Paintball Explosive Models EN12245 CE Certified 15-Year Service Life Air Cylinder High Pressure Hydrogen Cylinder for Paintball

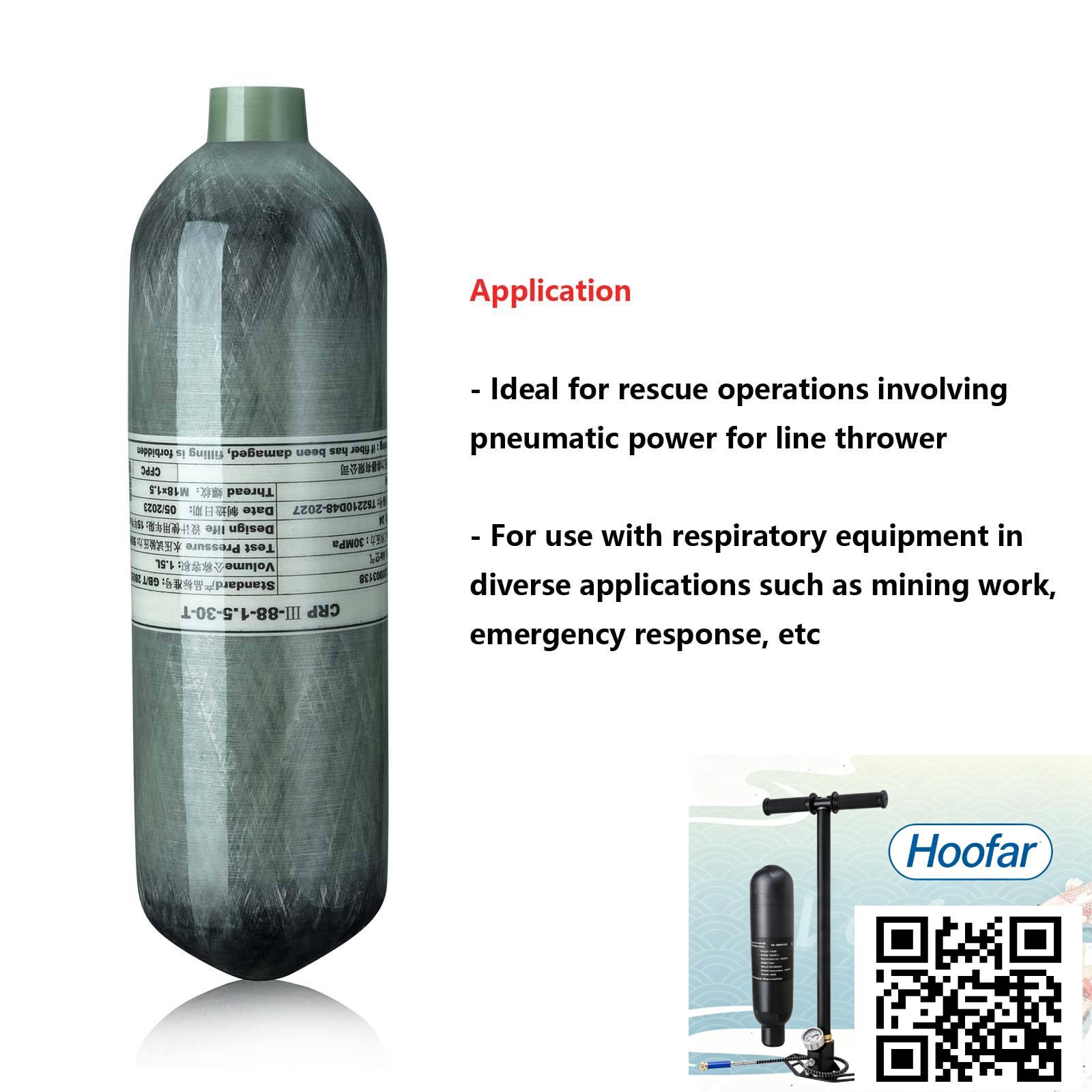

Name:Explosive Models EN12245 CE Certified 15-Year Service Life Air Cylinder High Pressure Hydrogen Cylinder for Paintball
Type:Fully Wrapped Carbon Fiber Reinforced Aluminium Lined Composite Cylinder
Function:Air Storage
Application:PCP Air Gun, SCBA, Medical treatment, Mining Rescue,etc
Material:Aluminum Liner With Carbon Fiber Wrapped
Water Capacity:6.8 Liter
Working Pressure:30 MPa
Thread:M18×1.5
Certificate:CE
Test Pressure:50 MPa
MOQ:15PCS
Delivery Time:20 working days after payment
Payment Terms:T/T,L/C ,Western Union
Port of Loading:Shanghai or Ningbo Port

Product Description

Scuba Composite Carbon Fiber Gas Cylinders Specification:

1) Water Capacity: 6.8Liter
2) Service Pressure: 300Bar
3) Diameter : 157 mm
4) Certificate : CE ,GB28053,EN12245,DOT,ISO


 Type

   HFCFC-6.8
  Outside diameter   157mm
  Water capacity   6.8 L
  Height   528 mm
  Weight 3.16kg(with aluminum valve)
  Working pressure   300Bar
  Test pressure   500Bar
  Material  High Strength Aluminum AA6061 Liner and Japan Carbon fiber wrapper outside
