Product Description

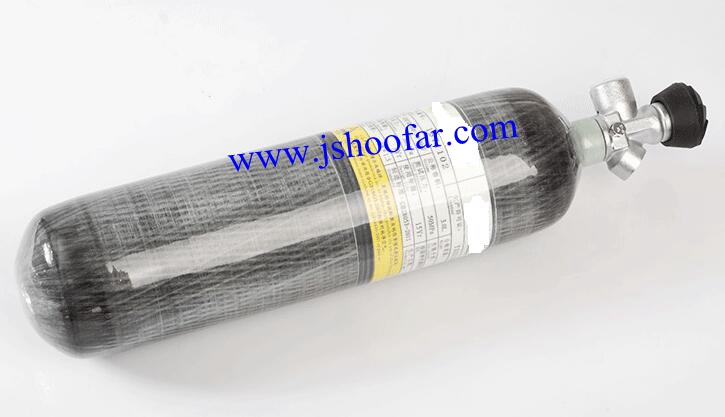

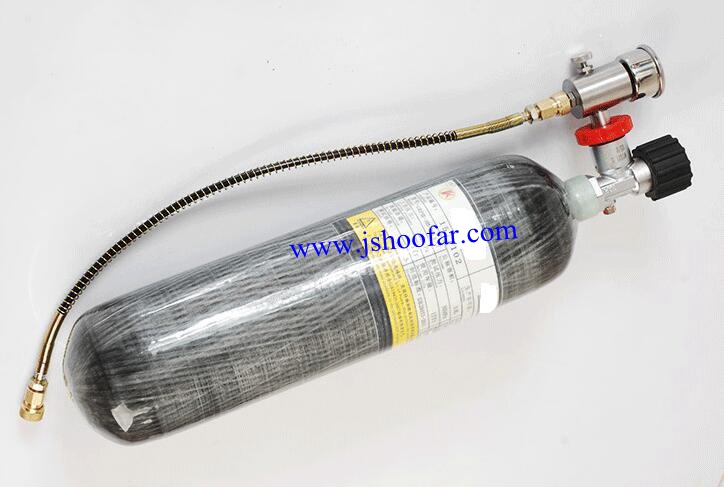

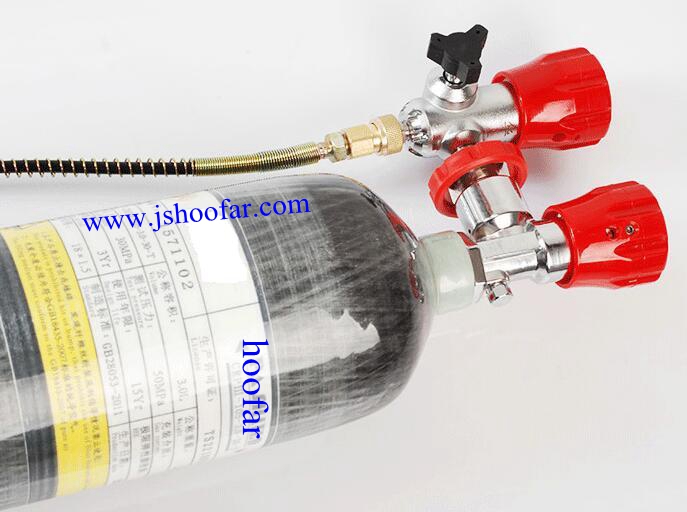

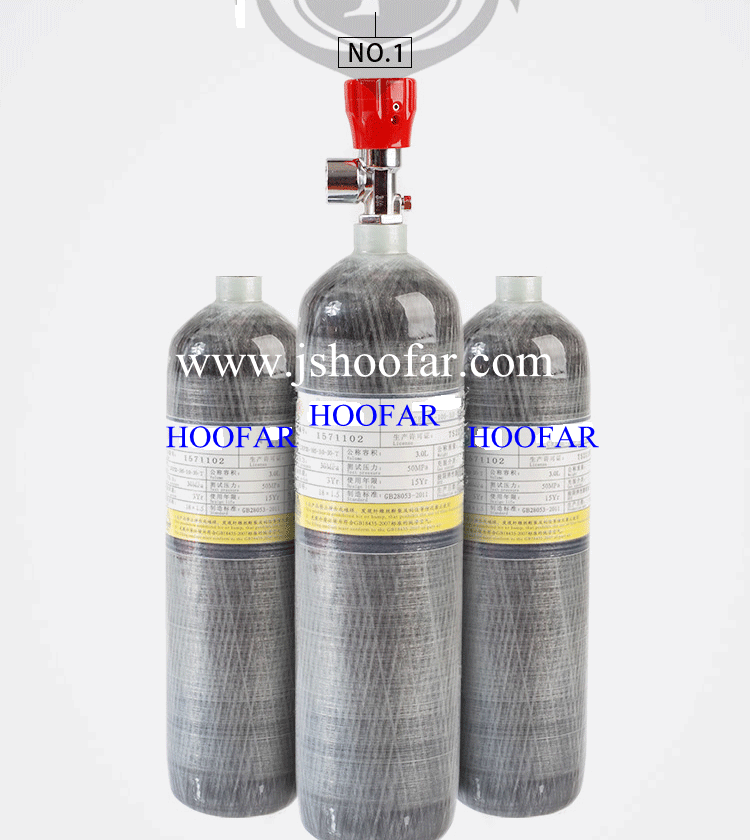

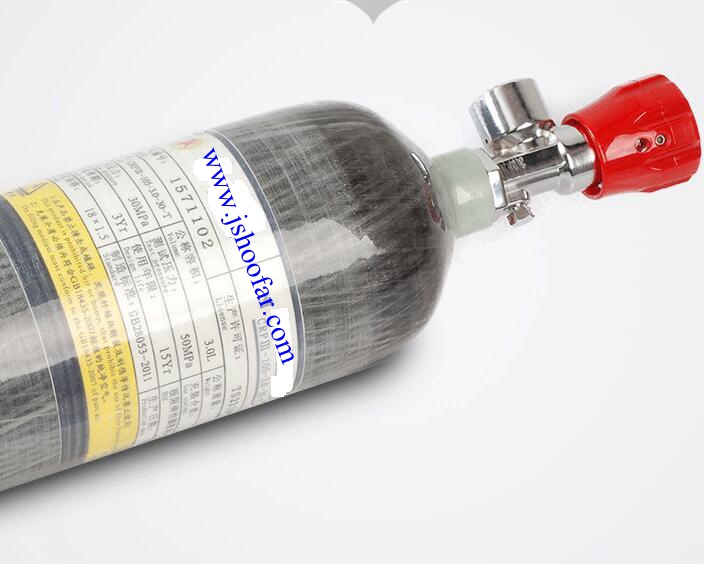

New 6.8l 300bar Carbon Wrapped Breathing Air Cylinder. This lightweight air cylinder is a pleasure to carry around in the field and easily fits into a backpack, weighing in at a mere 4kg. This cylinder provides between 20 to 45 top-ups depending on your PCP's cylinder size.
Used as a filling method for filling PCP air rifles as well as for diving or firefighting breathing aparatus.
*15 Years life span
*Tested to 500bar
*Test certificate attached permanently to cylinder and is tamper proof
*Does not require annual and bi-annual tests
* Supplied Empty
* Does not include and filling valves or hoses
Note:
90 % of PCP's are to be filled to 200bar only, this is a 300bar cylinder. It is your responsibility to ensure you fill your airgun to the manufacturers recommended fill pressure.
Type |
Volume (litre) |
Outer Diameter (mm) |
Length (mm) |
Weight (kg) |
Working Pressure (Mpa) |
Breaking Pressure (Mpa) |
HFCFC-0.5 |
0.5 |
60 |
305 |
0.6 |
30 |
≥90 |
HFCFC-1.6 |
1.6 |
114 |
268 |
1.4 |
30 |
≥90 |
HFCFC-2 |
2 |
96 |
433 |
1.5 |
30 |
≥90 |
HFCFC-3 |
3 |
112 |
445 |
1.9 |
30 |
≥90 |
HFCFC-4.7 |
4.7 |
137 |
492 |
3.0 |
30 |
≥90 |
HFCFC-6.8 |
6.8 |
157 |
528 |
3.8 |
30 |
≥90 |
HFCFC-9 |
9 |
174 |
558 |
4.9 |
30 |
≥90 |
Features of the Product
Structure: Aluminium lined and carbon fiber fully wrapped.
Advantage: The highest standard for safety.
Ultra lightweight, superior strength, durable design.
Perfect treatment for surface interior and exterior to reach corrosion-free.
Application: Air Storage Tank for PCP guns, firefighting, pit rescue and other life support.
Standard: GB28053, EN12245
Others: Color, thread,valve and fittings upon request.
Third party inspection available.
