Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun
Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun
Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun
Name:Carbon Fiber Wrapped Gas Cylinders for PCP Air Gun
Type:Fully Wrapped Carbon Fiber Reinforced Aluminium Lined Composite Cylinder
Function:Air Supply
Application:PCP Air Gun, SCBA, Medical treatment, Mining Rescue,etc
Material:Aluminum Liner With Carbon Fiber Wrapped
Water Capacity:0.5L/1.6L/2L/3L/4.7/6L/6.8L/8L/9L/12L
Working Pressure:30 MPa
Thread:M18×1.5-6H
Certificate:CE&CCS
Test Pressure:50 MPa
MOQ:15PCS
Delivery Time:20working days after payment
Payment Terms:T/T,L/C ,Western Union
Port of Loading:Shanghai or Ningbo Port

Product Description

Type

Volume

（litre)

Outer Diameter

(mm)

Length

(mm)

Weight

(kg)

Working Pressure

(Mpa)

Breaking Pressure

(Mpa)

HFCFC-0.5

0.5

60

305

0.6

30

≥90

HFCFC-1.6

1.6

114

268

1.4

30

≥90

HFCFC-2

2

96

433

1.5

30

≥90

HFCFC-3

3

112

445

1.9

30

≥102

HFCFC-4.7

4.7

137

492

3.0

30

≥102

HFCFC-6.8

6.8

157

528

3.8

30

≥≥102

HFCFC-9

9

174

558

4.9

30

≥102

HFCFC-12

12

205

565

7.4

30

≥102



Features : Carbon Fiber Wrapped Gas Cylinders

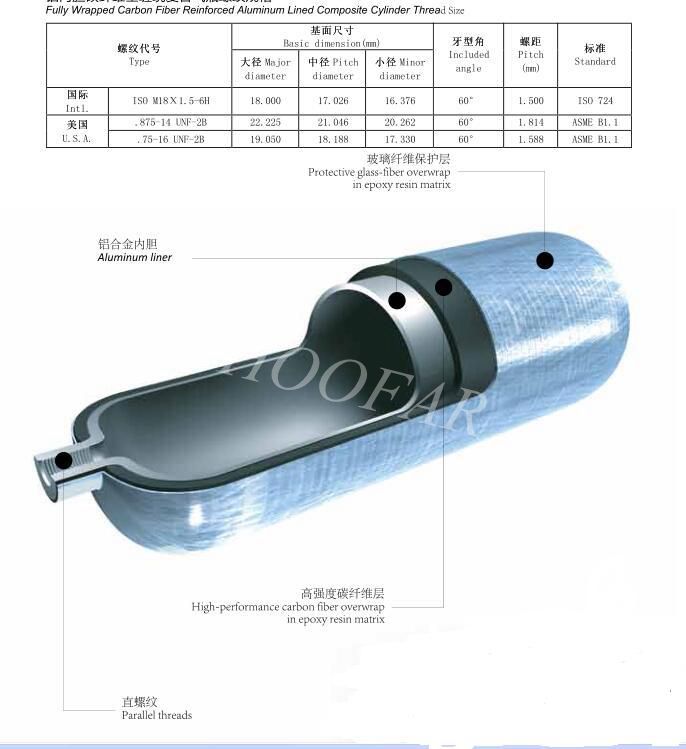

Structure: Aluminium lined and carbon fiber fully wrapped.

Advantage:

*The highest standard for safety.

* Ultra lightweight, superior strength, durable design.

*Perfect treatment for surface interior and exterior to reach corrosion-free.

Application: Air Storage Tank for PCP air guns, Self-contained breathing apparatus (SCBA), firefighting, pit rescue and other life support.

Standard: EN 12245
