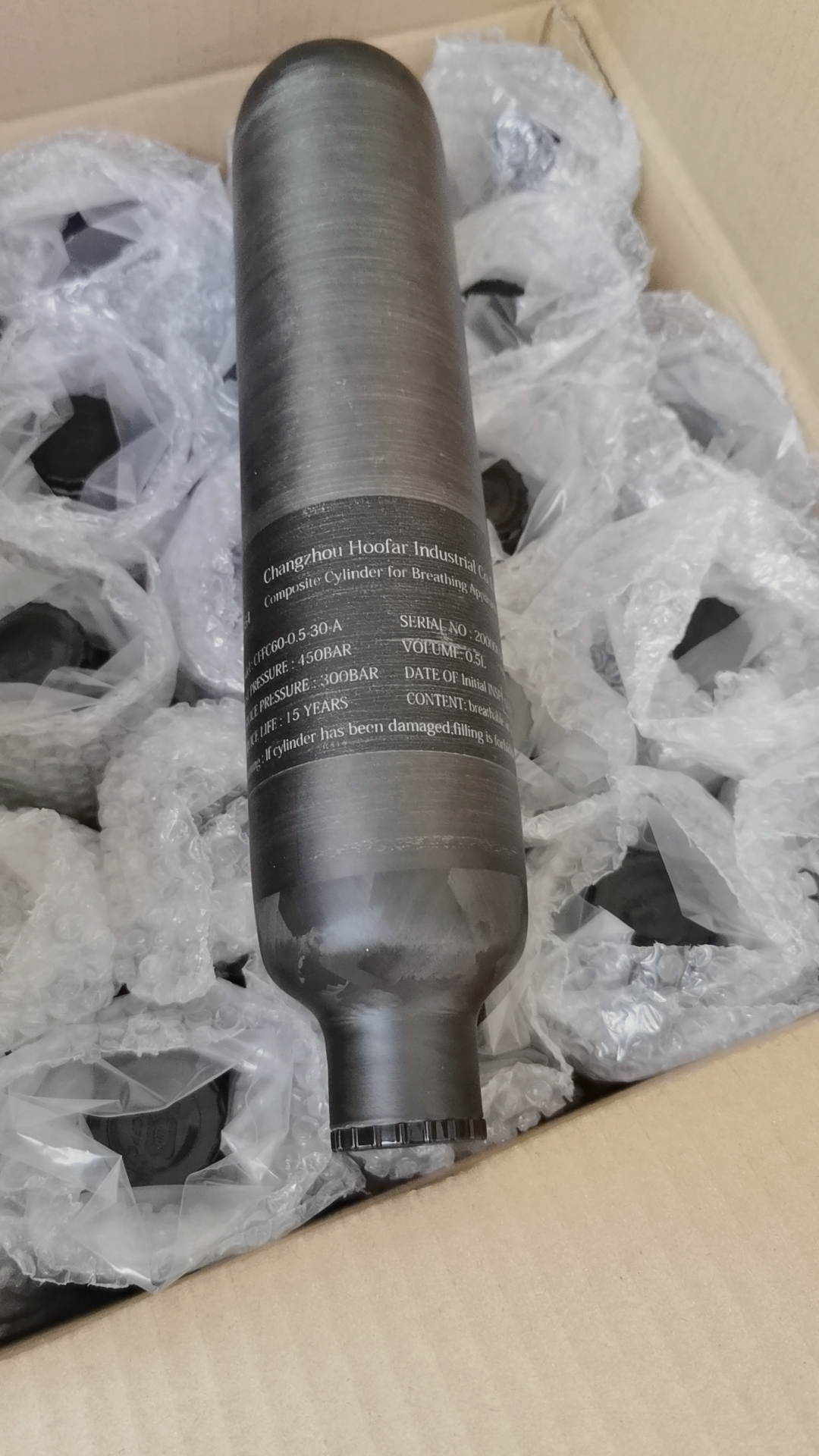

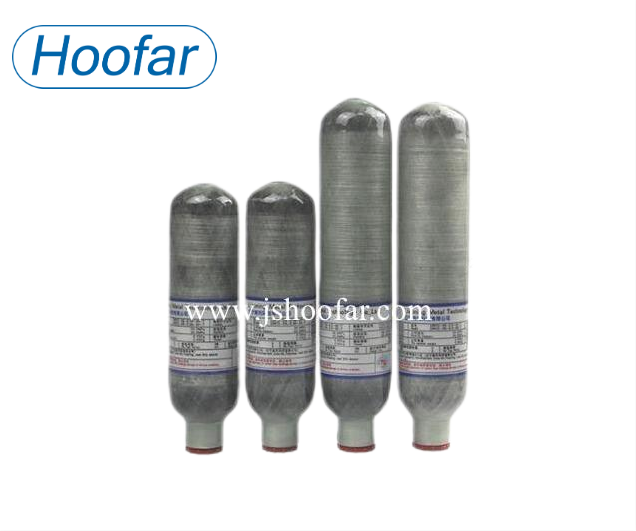

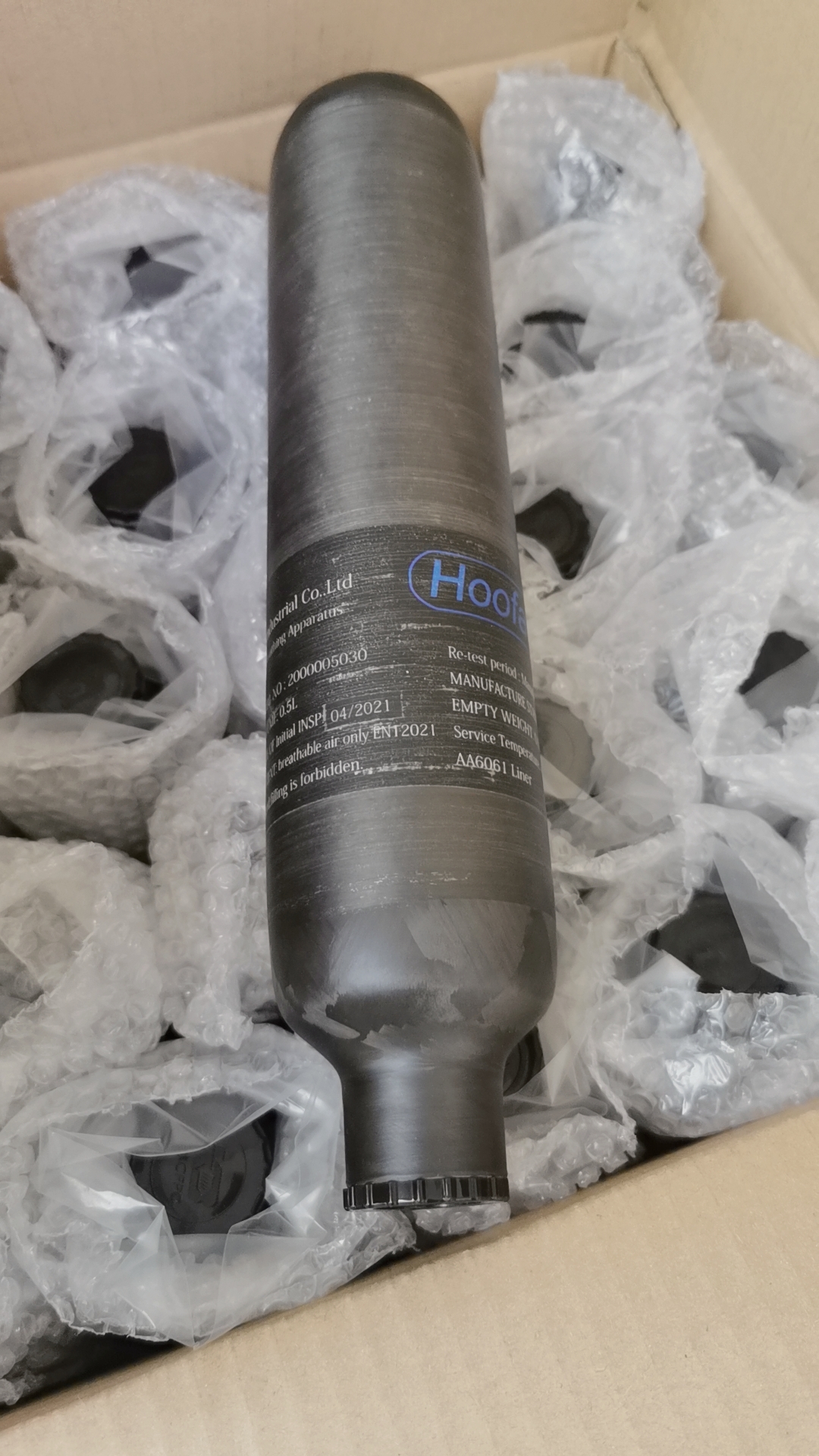

0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders
0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders 0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders 0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders 0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders
0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders 0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders 0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders 0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders
Name:0.5 Liter 300 bar 4500 PSI Carbon fiber wrapped Gas Cylinders
Working Pressure:300bar
Test Pressure:500bar
Water capacity:0.5 Liter
Material:Aluminum lined with T700 carbon fiber
Pressure:High
Thread Size:M18×1.5

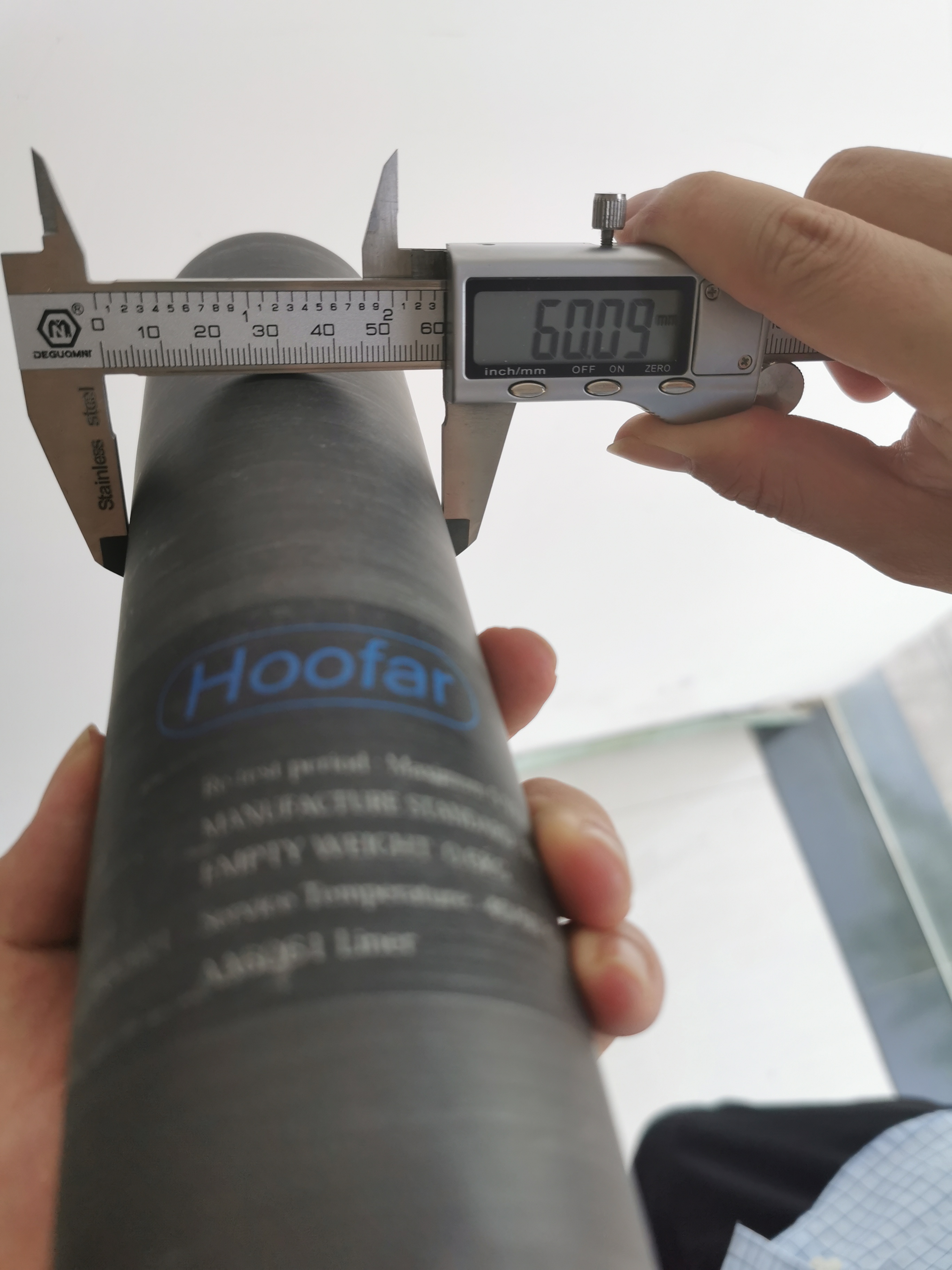

Outside diamter:60 mm
Certification:CE
Application:SCBA
Service Time:15years
Use:filling air
MOQ:15PCS
Terms of payment:T/T,L/C,Western Union

Product Description



Type

Volume

（litre)

Outer Diameter

(mm)

Length

(mm)

Weight

(kg)

Working Pressure

(Mpa)

Breaking Pressure

(Mpa)

HFCFC-0.5

0.5

60

305

0.6

30

≥90

HFCFC-1.6

1.6

114

268

1.4

30

≥90

HFCFC-2

2

96

433

1.5

30

≥90

HFCFC-3

3

112

445

1.9

30

≥102

HFCFC-4.7

4.7

137

492

3.0

30

≥102

HFCFC-6.8

6.8

157

528

3.8

30

≥≥102

HFCFC-9

9

174

558

4.9

30

≥102

HFCFC-12

12

205

565

7.4

30

≥102


Structure: Aluminium lined and carbon fiber fully wrapped.

Advantage: * The highest standard for safety.

                *  Ultra lightweight, superior strength, durable design.

                 * Perfect treatment for surface interior and exterior to reach corrosion-free.

Application: Air Storage Tank for PCP guns, firefighting, pit rescue and other life support.

Standard: GB28053, EN12245,DOT,ISO

Others: Color, thread,valve and fittings upon request.
