Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread
Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread
Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread
Name:Carbon Fiber Cylinders 90cu/ 4500psi 300BAR with M18×1.5 thread
Working Pressure:300bar
Test Pressure:500bar
Water capacity:2L-12L
Material:Aluminum lined with compositive carbon fiber
Pressure:300Bar
Thread Size:M18×1.5
Outside diamter:109mm,139mm,157mm,etc
Certification:CE
Application:SCBA
Service Time:15years
Use:filling air
MOQ:15PCS
Terms of payment:T/T,L/C,Western Union

Product Description

Type

Volume

litre)

Outer Diameter

(mm)

Length

(mm)

Weight

(kg)

Working Pressure

(Mpa)

Breaking Pressure

(Mpa)

HFCFC-0.5

0.5

60

305

0.6

30

≥90

HFCFC-1.6

1.6

114

268

1.4

30

≥90

HFCFC-2

2

96

433

1.5

30

≥90

HFCFC-3

3

112

445

1.9

30

≥102

HFCFC-4.7

4.7

137

492

3.0

30

≥102

HFCFC-6.8

6.8

157

528

3.8

30

≥≥102

HFCFC-9

9

174

558

4.9

30

≥102

HFCFC-12

12

205

565

7.4

30

≥102



Structure: Aluminium lined and carbon fiber fully wrapped.

Advantage: * The highest standard for safety.

                *  Ultra lightweight, superior strength, durable design.

                 * Perfect treatment for surface interior and exterior to reach corrosion-free.

Application: Air Storage Tank for PCP guns, firefighting, pit rescue and other life support.

Standard: GB28053, EN12245,CE,DOT,ISO

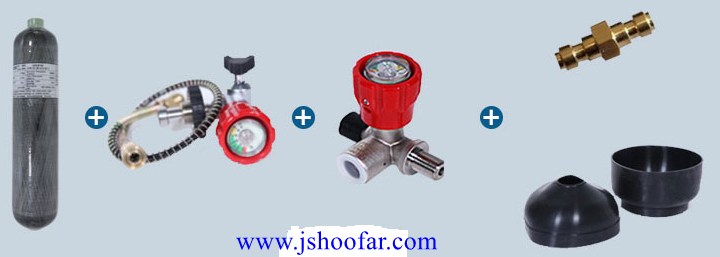

Others: Color, thread,valve and fittings upon request.


Should you have any questions or some more info needed on our gas cylinders & related gas items, just pls feel free to contact us! (Mob: +86-18118026813,E-mail:info@jshoofar.com ).
