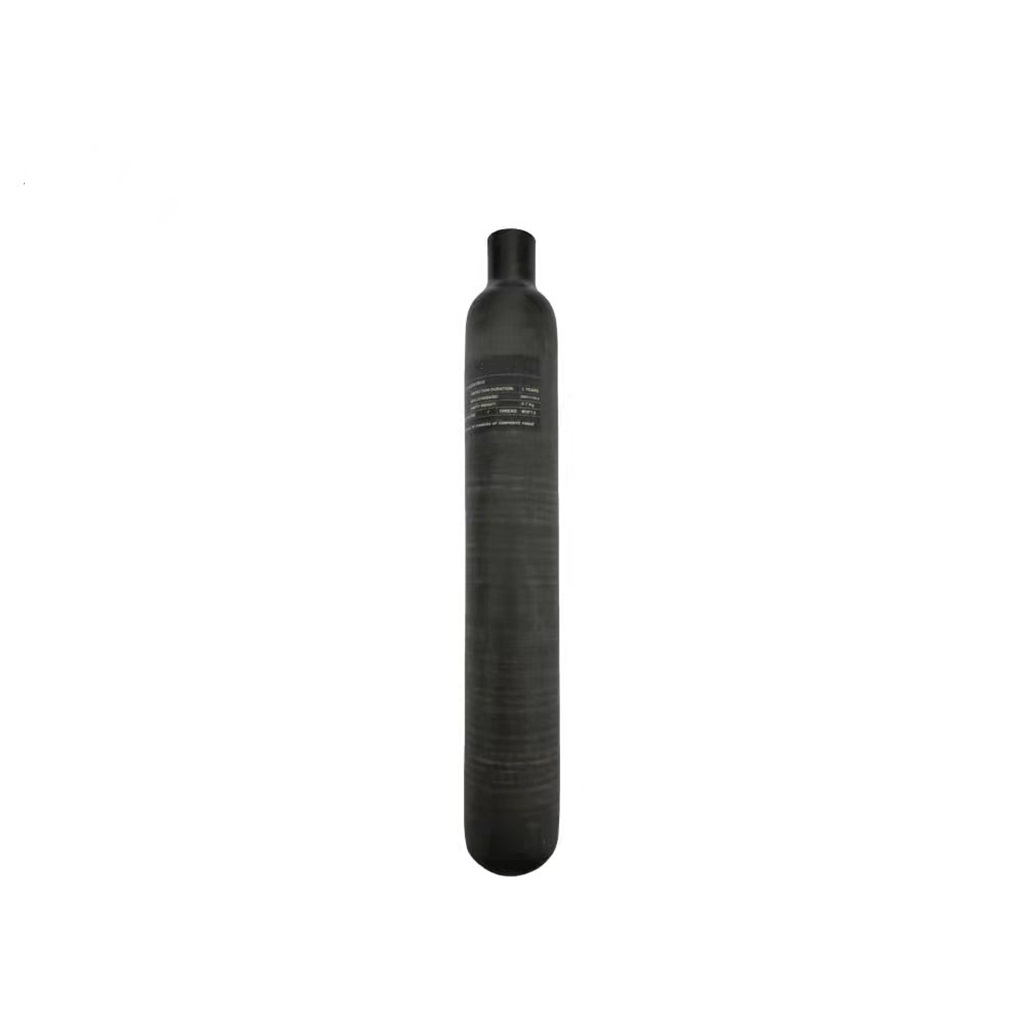

New 0.50 Liter Breathing Air Bottle with 300 bar working pressure
New 0.50 Liter Breathing Air Bottle with 300 bar working pressure New 0.50 Liter Breathing Air Bottle with 300 bar working pressure New 0.50 Liter Breathing Air Bottle with 300 bar working pressure
New 0.50 Liter Breathing Air Bottle with 300 bar working pressure New 0.50 Liter Breathing Air Bottle with 300 bar working pressure New 0.50 Liter Breathing Air Bottle with 300 bar working pressure
Name:New 0.50 Liter Breathing Air Bottle with 300 bar working pressure
Material:Composite Material
Use:Oxygen
Pressure:300 bar
water capacity:0.5L
outside diameter:60mm
cylinder height:290mm
cylinder weight:0.6kg
working pressure:300bar
test pressure:450bar
cylinder thread:M181.5
service time:15years
Standard:EN12245
Certification:CE

Product Description

Specifications：

CE European composite cylinder
1) Water Capacity: 0.5liter

2) Service Pressure: 300Bar

3) Length:290mm

4) Certification:TPED,CE,

Advantage: Ultra standard for safety.

                  Lightweight, high strength, corrosion-resistant, perfect treatment
                  for surface interior and exterior. Superior performance.
Delivery time: 10days to 30days upon deposit.

Specification Outer Diameter Water Volume Length Weight Working Pressure
mm liter mm kg bar
CRPIII-60-0.50-30-T 60 0.50 290 0.5 300
CRPIII-93-0.6-30-T 84 0.6 193 0.5 300
CRPIII-93-0.7-30-T 93 0.7 203 0.7 300
CRPIII-100-1.1-20-T 100 1.1 231 1 200
CRPIII-103-1.1-30-T 103 1.1 234 1.2 300
CRPIII-116-1.8-30-T 116 1.8 292 1.5 300
CRPIII-117-1.5-30-T 117 1.5 249 1.3 300
