Carbon Fiber Composite Air Tank of Medium Volume
Carbon Fiber Composite Air Tank of Medium Volume Carbon Fiber Composite Air Tank of Medium Volume Carbon Fiber Composite Air Tank of Medium Volume Carbon Fiber Composite Air Tank of Medium Volume
Carbon Fiber Composite Air Tank of Medium Volume Carbon Fiber Composite Air Tank of Medium Volume Carbon Fiber Composite Air Tank of Medium Volume Carbon Fiber Composite Air Tank of Medium Volume
Name:Carbon Fiber Composite Air Tank of Medium Volume
Water volume:0.5L-12L
Outer diameter:85mm-208mm
Working pressure:200bar/300bar
Test pressure:500bar
Cylinder life-span:15years
Material:Aluminium lined and carbon fiber fully wrapped
Certificate:CE
Standard:EN1225
MOQ:15PCS
Terms of Payment:T/T,L/C or Western Union
Delivery Time:20 days after payment
Port of Lading:Shanghai or Ningbo

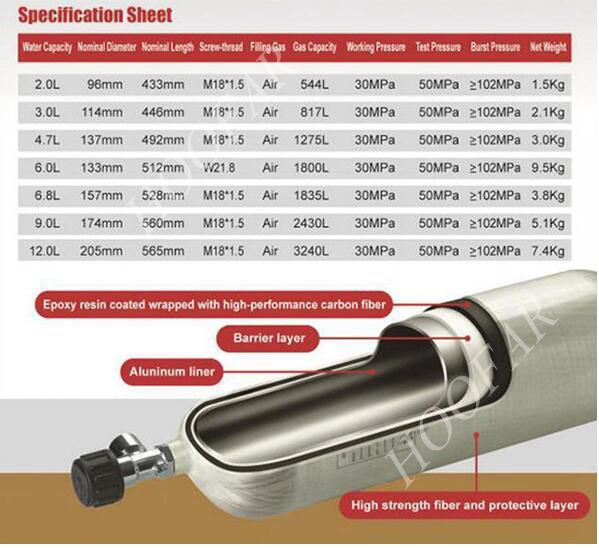

Product Description


Type

Volume

litre)

Outer Diameter

(mm)

Length

(mm)

Weight

(kg)

Working Pressure

(Mpa)

Breaking Pressure

(Mpa)

HFCFC-0.5

0.5

60

305

0.6

30

≥90

HFCFC-1.6

1.6

114

268

1.4

30

≥90

HFCFC-2

2

96

433

1.5

30

≥90

HFCFC-3

3

112

445

1.9

30

≥102

HFCFC-4.7

4.7

137

492

3.0

30

≥102

HFCFC-6.8

6.8

157

528

3.8

30

≥≥102

HFCFC-9

9

174

558

4.9

30

≥102

HFCFC-12

12

205

565

7.4

30

≥102

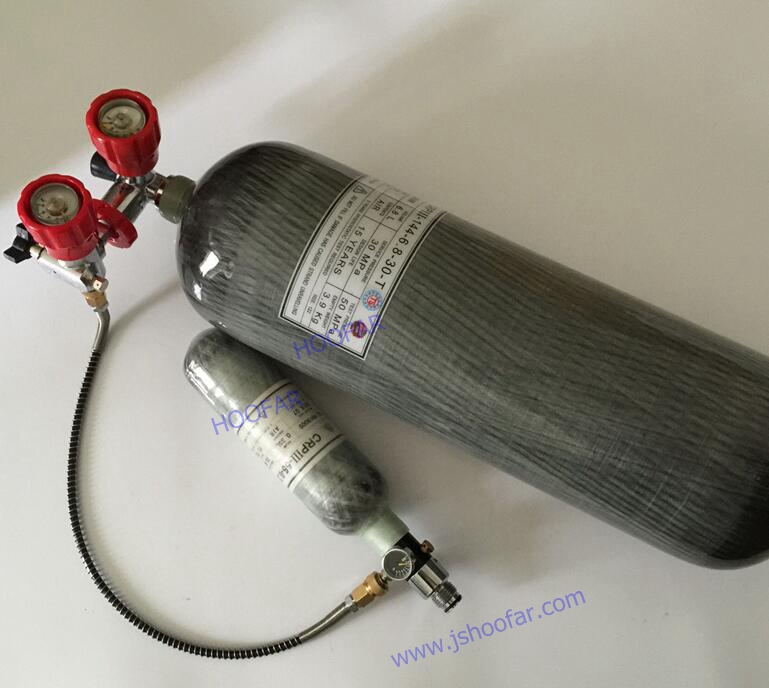

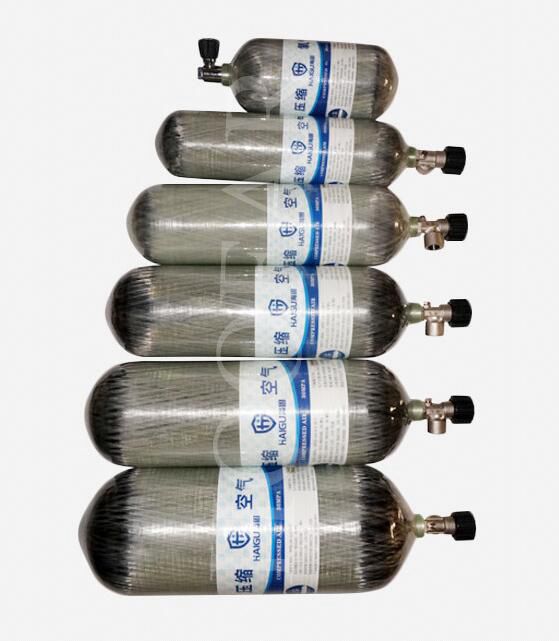

Carbon Fiber Breathing Air Cylinder 0.5L,0.6L,0.8L,1.5L,2L, 3L, 6.8L, 9L, 12L, Air Breathing Apparatus Cylinders, Air Breathing Apparatus SCBA Cylinder, Carbon Fiber Cylinder for breathing system.


Specs:

-Water volume: 0.5Liter to 12Liter;

-Outer diameter: 85mm to 208mm;

-Working pressure 200bar/300bar;

-Cylinder life-span: 15years;

-Aluminium lined and carbon fiber fully wrapped.


*Advantages: Safe, lightweight, corrosion-resistant, Superior strength, Durable design, perfect treatment for surface interior and exterior.


*Applications: Firefighting, pit rescue and other life support system.

Should you have any questions or some more info needed on our gas cylinders & related gas items, just pls feel free to contact us! (Mob: +86-18118026813 or E-mail : info@jshoofar.com ).
